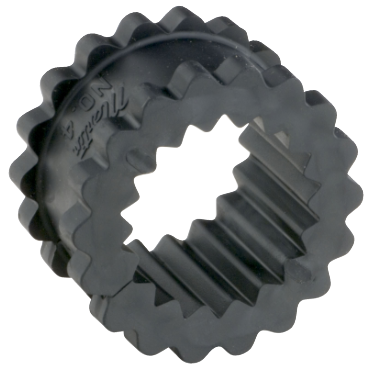

Martin 9JEMS QUADRA-FLEX Coupling Sleeve

Product Description

The Martin 9JEMS QUADRA-FLEX Coupling Sleeve is designed to connect two shafts while ensuring flexibility and shock absorption. This coupling sleeve is particularly useful in various mechanical applications where reliable performance is critical.

• Two flanges with internal teeth secure an elastomeric flexible sleeve.
• Simple installation with no need for maintenance.
• Dampens vibrations effectively.

Product Highlights

Provides torsional flexibility and helps prevent shock loading on equipment.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814463

Technical Specifications

• Outside Diameter: 6 inches
• Color: Black
• Minimum Temperature Range: -50 °F
• Maximum Temperature Range: 275 °F
• Torsional Stiffness: 6875 Inch Pounds/Radian
• Material: TPR
• Sleeve Type: JEMS
• Maximum RPM: 3750 rpm
• Horsepower @ RPM: 50 hp @ 1800 rpm
• Torque Rating: 1800.0 in lb
• Insert Style: One Piece Split
• Coupling Size: 9
• Weight: 1.46 lb
• EAN or UPC: 697950277837
