Martin 9H MSG Coupling Sleeve Power 3 in L

Product Description

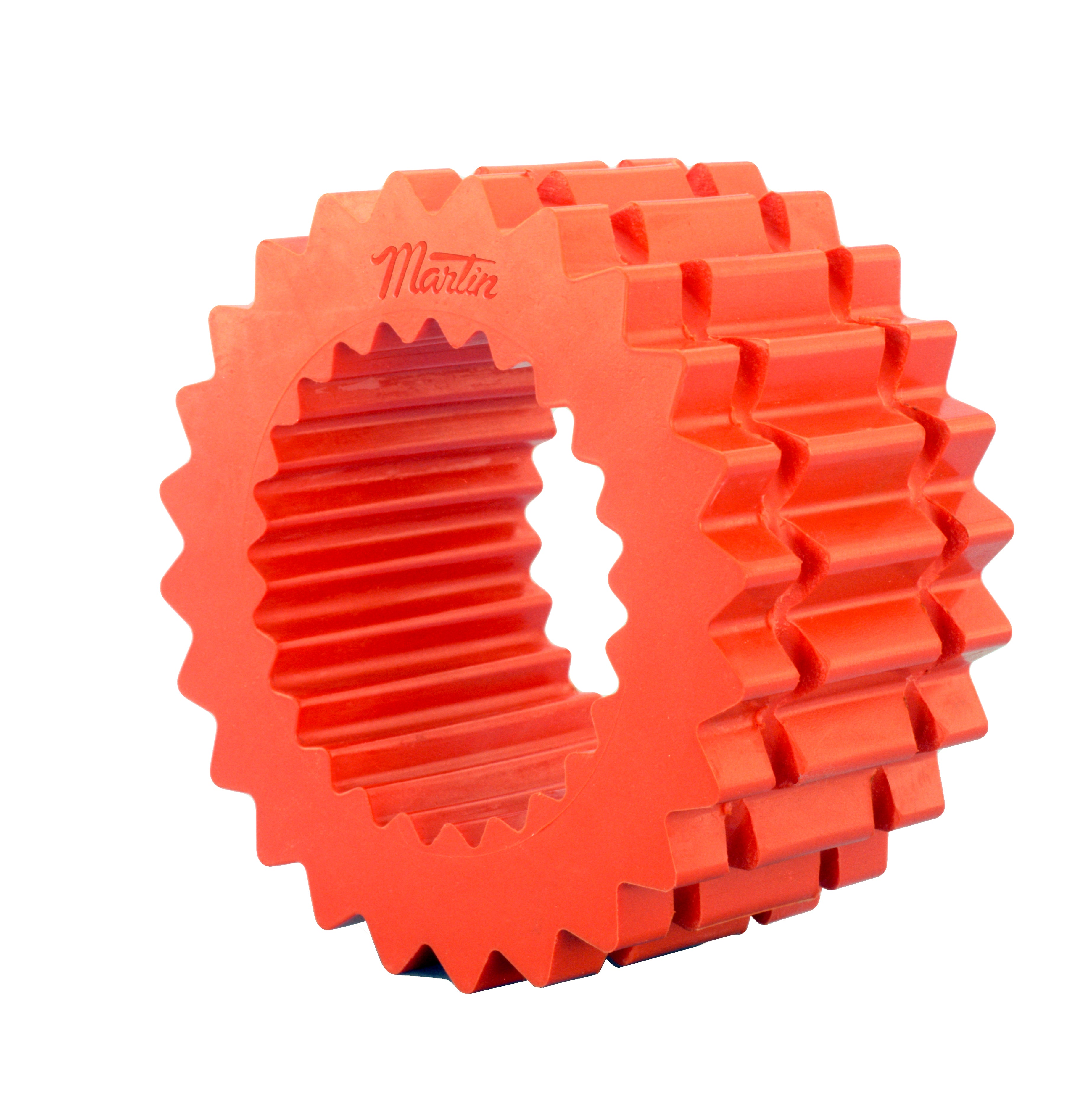

The Martin Quadra-Flex 9H Coupling Sleeve is a one-piece coupling designed for durability and flexibility. Compatible with 09 couplings, this sleeve measures three inches in length and has an outer diameter of six point zero eleven inches. It can handle a maximum speed of three thousand seven hundred fifty revolutions per minute and a torque rating of seven thousand two hundred inch-pounds. It operates effectively in temperatures ranging from negative sixty-five to two hundred fifty degrees Fahrenheit.

• One-piece design for easy installation
• Constructed from Hytrel material for strength
• Available for multiple coupling configurations

Product Highlights

This coupling sleeve is ideal for applications requiring reliable performance under misalignment, shock, and vibration.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Part Number: 9H MSG

Technical Specifications

• Coupling Size: 09
• Maximum Speed: 3750 rpm
• Torque Rating: 7200 in-lb
• Outside Diameter: 6.011 in
• Length: 3 in
• Material: Hytrel
• Temperature Rating: -65 to 250 deg F
• Finish: Orange
