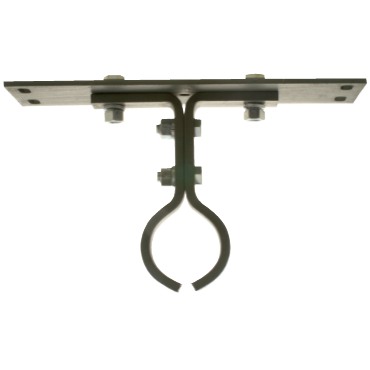

Martin 9CH2204-O Screw Conveyor Hangers

Product Description

The Martin 9CH2204-O is a screw conveyor hanger designed for effective installation on trough flanges. These hangers are suitable in settings where dust-tight or weatherproof requirements are not critical. They minimize obstruction in high-capacity conveyors, ensuring smooth material flow.

• Hanger Type: 220
• Conveyor Diameter: 9 inches
• Coupling Diameter: 2 inches

Product Highlights

Ideal for various material handling applications, this hanger provides support and stability for conveyor systems without hindering performance.

Product Information

Standard Information

• Brand: Martin
• MPN: 9CH2204-O

Technical Specifications

• Coupling O.D.: 2 inches
• Mounting Distance (Drop): 6 3/8 inches
• Bolt Hole Length: 2 1/2 inches
• Conveyor Diameter: 9 inches
• Bolt Hole Width: 12 1/4 inches
• Hanger Type: 220
• Oil Pipe: Yes
• Weight: 11.0 LB
• EAN or UPC: 697950124889
