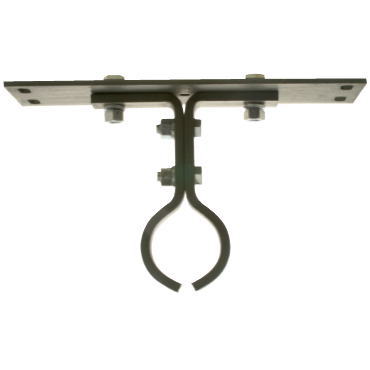

Martin 9CH2203 Screw Conveyor Hangers 9 Diameter 1.5 Bore

Product Description

The Martin 9CH2203 Screw Conveyor Hangers provide efficient support for screw conveyor systems. These hangers are intended for mounting on top of trough flanges and are suitable where a dust-tight or weatherproof operation is not necessary. The design minimizes obstruction to material flow in high-capacity conveyors, ensuring smooth operation. The hangers are available with friction-type bearings, enhancing durability.

• Style 220 for nine-inch diameter screw
• Includes 1.5-inch bore
• No oil pipe required

Product Highlights

These hangers are engineered specifically for efficient material handling in screw conveyor systems.

Product Information

Standard Information

• Brand: Martin
• MPN: 9CH2203

Technical Specifications

• Bolt Hole Length: 2.5 inches
• Coupling O.D.: 1.5 inches
• Hanger Type: 220
• Conveyor Diameter: 9 inches
• Oil Pipe: No
• Mounting Distance (Drop): 6.375 inches
• Bolt Hole Width: 12.25 inches
• Weight: 9.0 lbs
• EAN or UPC: 697950124858
