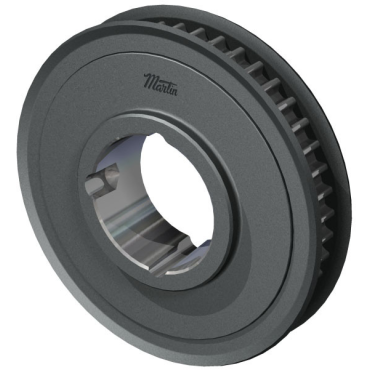

Martin 8MX75S36-2517 Taper Lock Bushed Sprocket

Product Description

The Martin 8MX75S36-2517 is a taper lock bushed sprocket designed for efficiency and reliability. This sprocket is built for single strand chains with seventy-five teeth. Its robust construction includes a steel material with a protective coating to enhance durability.

• Compatible with standard single strand chains
• Features a taper lock design for easy assembly
• Internal bore range accommodates up to two and a half inches

Product Highlights

Engineered for precision, this sprocket reduces noise and ensures smooth operation. Ideal for various mechanical power transmission applications.

Product Information

Standard Information

• Brand: Martin
• Part Number: 8MX75S36-2517

Technical Specifications

• No. of Teeth: 75
• Bushing Series: 2517
• Belt Width: 36.000 mm
• Outside Diameter: 7.456 inches
• Bushing Type: Taper Lock
• Belt Pitch: 8.000 mm
• Bore Range [Max]: 2.5 inches
• Length Through Bore: 1.970 inches
• Weight: 13.3 lbs
• Material: Steel
