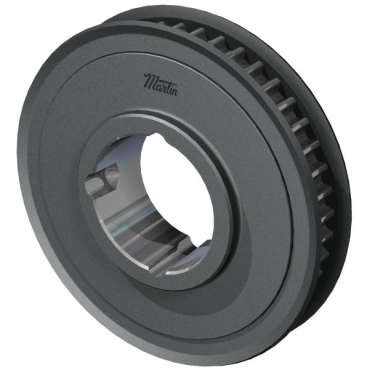

Martin 8MX63S12-2012 Taper Lock Bushed Sprocket

Brand: MARTIN
SKU: 8MX63S12-2012
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Martin 8MX63S12-2012 is a Taper Lock Bushed Sprocket designed for efficient power transmission. This sprocket is made of steel and features a protective coating. It is suitable for single strand applications with 63 teeth, making it ideal for conveyor systems and machinery requiring reliable movement.

  • Compatible with metric systems.
  • Maximum bore size of two inches.
  • Length through bore of one and one-quarter inches.

Product Highlights

This sprocket's design ensures minimal wear and consistent performance over time.

Product Information

Standard Information

  • Brand: Martin
  • MPN: 8MX63S12-2012
Technical Specifications
Material
Steel
Inch/Metric
Metric
Finish
Protective Coating
Belt Width
12.000 mm
Bore Range [Max]
2 in
No. of Teeth
63
Length Through Bore
1.25 in
Belt Pitch
8.000 mm
Flange O.D. [Max]
6.720 in
Hub Dia.
4 in
Bushing Type
Taper Lock
Outside Dia.
6.2530 in
Weight
5.55 lbs
EAN or UPC
697950720234
