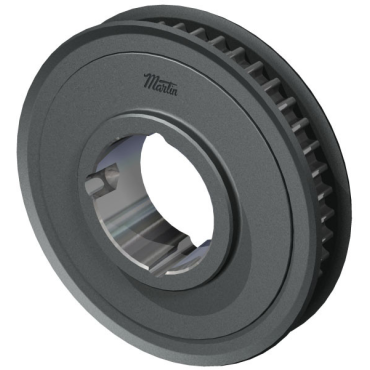

Martin 8MX48S36-2012 Taper Lock Bushed Sprocket

Product Description

The Martin 8MX48S36-2012 is a Taper Lock Bushed Sprocket designed for efficient power transmission in machinery. This sprocket has 48 teeth and is made of steel. It features a taper lock design for securing the sprocket onto the shaft without the need for additional tooling.

• Designed for single strand applications
• Compatible with standard # chains
• Protective coating for durability

Product Highlights

This sprocket is suitable for applications requiring a reliable and efficient turning mechanism in various industrial settings.

Product Information

Standard Information

• Brand: Martin
• MPN: 8MX48S36-2012

Technical Specifications

• Hardened Teeth: Without Hardened Teeth
• Belt Pitch: 8.000 mm
• Finish: Protective Coating
• Outside Diameter: 4.7490 inches
• Belt Width: 36.000 mm
• Bore Range [Max]: 2 inches
• Sprocket Style: A
• Material: Steel
• Flange Outer Diameter [Max]: 5.210 inches
• Inch/Metric: Metric
• Bushing Type: Taper Lock
• No. of Strands Across: 1
• Pitch Diameter: 4.812 inches
• Length Through Bore: 2.470 inches
• Type: A
• No. of Teeth: 48
• Bushing Series: 2012
• Width Across Teeth: 1.86 inches
• Weight: 4.3 LB
• EAN or UPC: 697950720425
