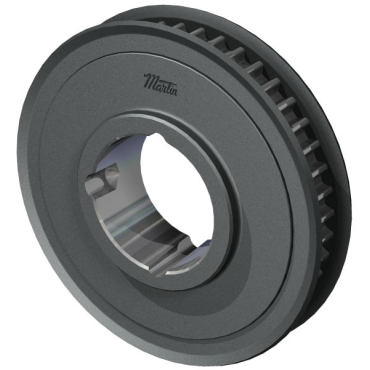

Martin 8MX38S21-1610 Taper Lock Bushed Sprocket

Product Description

The Martin 8MX38S21-1610 is a Taper Lock Bushed Sprocket designed for efficient power transmission. This sprocket is built for single strand chains and features thirty-eight teeth. It does not include hardened teeth, making it suitable for specific applications where this feature is not required.

• Type A Sprocket for # Chain
• Taper Lock Bushing Series 1610
• Pitch Diameter of 3.810 inches

Product Highlights

The Martin sprocket is easy to install and provides a reliable connection in machinery.

Product Information

Standard Information

• Brand: Martin
• Part Number: 8MX38S21-1610

Technical Specifications

• Bushing Type: Taper Lock
• No. of Teeth: 38
• Outside Diameter: 3.7470 inches
• Width Across Teeth: 1.2 inches
• Length Through Bore: 1.400 inches
• Material: Steel
• Finish: Protective Coating
• Bore Type: Bushed
• Bushing Series: 1610
• Weight: 1.9 lbs
• Flange O.D. [Max]: 4.210 inches
• Bore Range [Max]: 1 5/8 inches
