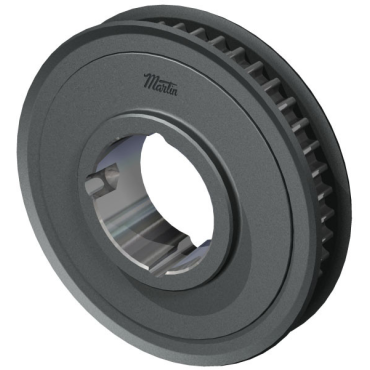

Martin 8MX37S21-1610 Taper Lock Bushed Sprocket

Product Description

The Martin 8MX37S21-1610 is a taper lock bushed sprocket designed for use with # chain. This sprocket has thirty-seven teeth and a single strand configuration. The product dimensions and construction make it suitable for various mechanical applications requiring reliable torque transmission.

• Compatible with taper lock bushings.
• Manufactured from durable steel.
• Designed for a maximum bore range.

Product Highlights

This sprocket features a protective coating that enhances durability and performance.

Product Information

Standard Information

• Brand: Martin
• Part Number: 8MX37S21-1610

Technical Specifications

• Sprocket Style: A
• Length Through Bore: 1.400 inches
• Inch/Metric: Metric
• No. of Teeth: 37
• Hardened Teeth: Without Hardened Teeth
• Bushing Series: 1610
• Belt Pitch: 8.000 mm
• No. of Strands Across: 1
• Belt Width: 21.000 mm
• Bore Type: Bushed
• Outside Diameter: 3.6460 inches
• Material: Steel
• Finish: Protective Coating
• Width Across Teeth: 1.2 inches
• Bushing Type: Taper Lock
• Flange Outside Diameter (Max): 4.044 inches
• Bore Range (Max): 1 5/8 inches
• Pitch Diameter: 3.709 inches
• Weight: 1.7 lbs
• EAN or UPC: 697950720692
