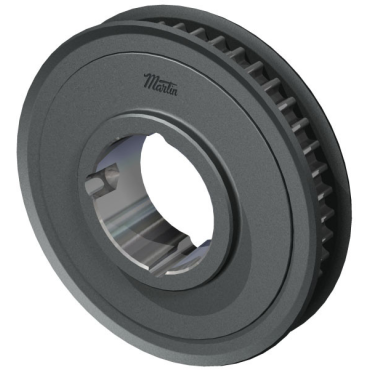

Martin 8MX33S12-1610 Taper Lock Bushed Sprocket

Product Description

The Martin 8MX33S12-1610 is a Taper Lock Bushed Sprocket suitable for various mechanical applications. This sprocket features thirty-three teeth and is designed to operate with a single strand chain. Its taper lock bushing system provides a secure fit, making installation straightforward.

• Designed for single strand chains
• Constructed with steel for durability
• Features a protective coating for enhanced resistance

Product Highlights

This Martin sprocket is ideal for applications requiring reliable power transmission without the need for lubrication, making it efficient and low-maintenance.

Product Information

Standard Information

• Manufacturer: Martin
• Part Number: 8MX33S12-1610

Technical Specifications

• Outside Diameter: 3.2450 in
• Number of Teeth: 33
• Bushing Type: Taper Lock
• Bore Type: Bushed
• Hardened Teeth: Without Hardened Teeth
• Belt Pitch: 8.000 mm
• Bore Range [Max]: 1 5/8 in
• Number of Strands Across: 1
• Pitch Diameter: 3.308 in
• Inch/Metric: Metric
• Bushing Series: 1610
• Flange O.D. [Max]: 3.566 in
• Belt Width: 12.000 mm
• Length Through Bore: 1 in
• Type: A
• Sprocket Style: A
• Finish: Protective Coating
• Width Across Teeth: 1 in
• Material: Steel
• Weight: 1.3 LB
• EAN or UPC: 697950720869
