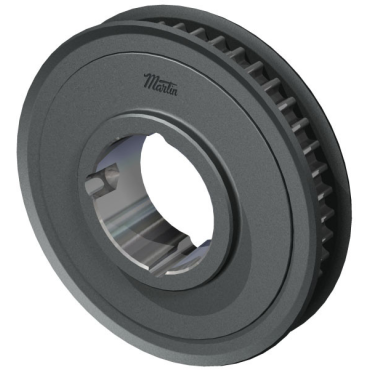

Martin 8MX32S21-1210 Taper Lock Bushed Sprocket

Product Description

The Martin 8MX32S21-1210 is a taper lock bushed sprocket designed for power transmission applications. This sprocket features thirty-two teeth and is constructed from steel. It does not have hardened teeth, making it suitable for various standard chain applications.

• Constructed from durable steel for longevity.
• Designed with a taper lock bushing for easy installation.
• Compatible with metric and standard chains.

Product Highlights

This sprocket is ideal for industrial applications where reliable power transmission is necessary. It ensures minimal noise and efficient operation while maintaining precise fit and functionality.

Product Information

Standard Information

• Brand: Martin
• Part Number: 110934208
• Minimum Order Quantity: 1

Technical Specifications

• Sprocket Style: A
• Finish: Protective Coating
• Bore Range [Max]: 1 1/4 in
• Outside Diameter: 3.1450 in
• Belt Width: 21.000 mm
• Hardened Teeth: Without Hardened Teeth
• Material: Steel
• Flange O.D. [Max]: 3.610 in
• Pitch Diameter: 3.208 in
• Bushing Type: Taper Lock
• Bushing Series: 1210
• No. of Teeth: 32
• Length Through Bore: 1.400 in
• Weight: 3.0 LB
• EAN or UPC: 697950720883
