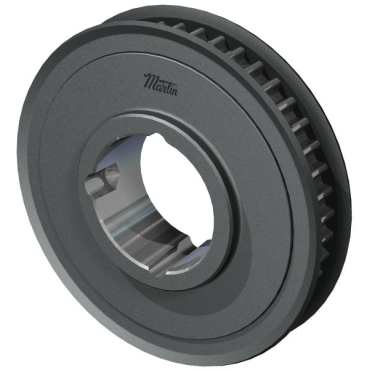

Martin 8MX31S21-1210 MPC Bushed Synchronous Sprocket

Product Description

The Martin 8MX31S21-1210 is a Bushed Synchronous Sprocket designed for use in mechanical power transmission applications. This product features thirty-one teeth and a taper lock bush for secure installation. It is suitable for single strand applications without hardened teeth.

• Sprocket for # chain
• 31 teeth with a taper lock bush
• Manufactured from steel

Product Highlights

This sprocket is ideal for synchronous drive systems, ensuring efficient performance with minimal noise.

Product Information

Standard Information

• Brand: Martin
• MPN: 8MX31S21-1210

Technical Specifications

• Bushing Series: 1210
• Bore Range [Max]: 1 1/4 inches
• Type: A
• Flange O.D. [Max]: 3.328 inches
• No. of Teeth: 31
• O.D.: 3.0450 inches
• Belt Width: 21.000 mm
• Belt Pitch: 8.000 mm
• Material: Steel
• No. of Strands Across: 1
• Bore Type: Bushed
• Width Across Teeth: 1.2 inches
• Finish: Protective Coating
• Weight: 1.6 LB
• EAN or UPC: 697950720906
