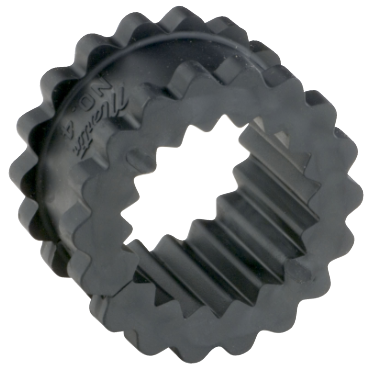

Martin 8JEMS QUADRA-FLEX Coupling Sleeve

Product Description

The Martin 8JEMS QUADRA-FLEX Coupling Sleeve is designed for efficient power transmission. It features two flanges with internal teeth that effectively engage an elastomeric flexible sleeve. This design simplifies installation and requires no maintenance.

• Compatible with various applications
• Helps dampen vibrations
• Soft torsional performance for improved shock control

Product Highlights

This coupling sleeve dampens vibrations and provides shock control while ensuring easy installation.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814416

Technical Specifications

• Insert Style: One Piece Split
• Coupling Size: 8
• Temperature Range Max: 275 °F
• HP @ RPM: 32 hp @ 1800 rpm
• Temperature Range Min: -50 °F
• RPM Max: 4500 rpm
• Torque Rating Max: 1135.0 in lb
• Sleeve Type: JEMS
• Color: Black
• Material: TPR
• Outside Diameter: 5 1/16 in
• Torsional Stiffness: 4335
• Weight: 1.13 lb
• EAN or UPC: 697950277448
