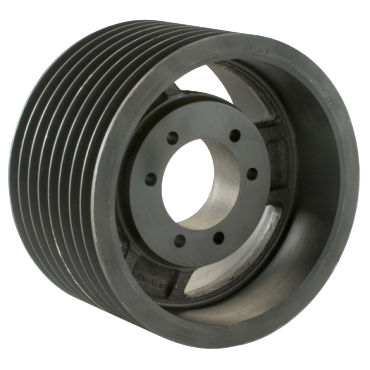

Martin 8B380F Bushing Bore V-Belt Pulley - A, B Belt Section, 8 Groove, 38 in Pitch Dia., 38.35 in O.D.

Product Description

The Martin Bushing Bore V-Belt Pulley with MPN 8B380F is designed for efficient mechanical power transmission applications. This pulley features an eight-groove design suitable for A and B belt sections with a pitch diameter of thirty-eight inches. The outer diameter measures thirty-eight point three five inches and is constructed from durable cast iron material.

• Interchangeable with other QD bushings
• Manufactured from Class 30 Gray Iron
• Reversible mounting type for flexibility

Product Highlights

This pulley is statically balanced for smooth operation, ensuring minimal vibrations during use. It adheres to ANSI and industry tolerances, making it a reliable choice for various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 8B380F
• Material: Cast Iron
• Pitch Diameter: 38 in
• Outside Diameter: 38.3500 in
• Number Of Grooves: 8
• Bushing Series: F
• Bushing Bore Range: 1.0000 to 4.0000 in
• Face Width: 6.2500 in
