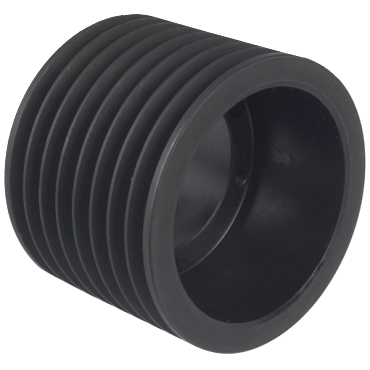

Martin 88V1600J Bushing Bore V-Belt Pulley - 8V Belt Section - 8 Groove - 16 in Pitch Dia.

Product Description

The Martin 88V1600J Bushing Bore V-Belt Pulley is designed for efficient power transmission. This pulley features a pitch diameter of sixteen inches and is suitable for 8V belt sections. Made from cast iron, it offers durability and reliability. The product adheres to standard tolerances in the industry, ensuring compatibility with various QD bushings.

• Compatible with other manufacturer’s QD bushings
• Precision machining ensures a consistent finish
• Statically balanced for maximum rim speed

Product Highlights

This product is ideal for mechanical power transmission applications. It is commonly used in multiple industries for systems requiring reliable pulleys.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Material: Cast Iron
• Number of Grooves: 8
• Outside Diameter: 15.8000 in
• Face Width: 9.3750 in
• Bushing Series: J
• Bushing Bore Range: 1.2500 to 4.5000 in
• Length Through Bore: 4.5 in
• Storage Dimensions: 15.8 in x 15.8 in x 4.5 in
