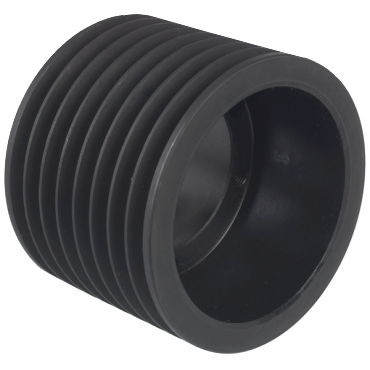

Martin 85V1320F Bushing Bore V-Belt Pulley - 5V Belt Section, 8 Groove, 13.1 in Pitch Dia., 13.2 in O.D., Bushed, F Series Bushing

Product Description

The Martin 85V1320F Bushing Bore V-Belt Pulley is designed for the 5V belt section. This product features an eight-groove design and a pitch diameter of thirteen point one inches. The outside diameter measures thirteen point two inches, making it suitable for various applications in mechanical power transmission.

• Cast iron construction ensures durability.
• Compatible with taper bushings from other manufacturers.
• Statically balanced for optimal performance.

Product Highlights

This pulley is engineered with precise machining processes to maintain high quality and consistent finishes.

Product Information

Standard Information

• Country of Origin: United States
• Min Order Qty: 1

Technical Specifications

• Weight: 60 lbs
• Pitch Diameter: 13.1 in
• Outside Diameter: 13.2000 in
• Face Width: 5.8125 in
• Overall Width: 5 13/16 in
• Number of Grooves: 8
• Bushing Series: F
• Bushing Bore Range: 1.0000 to 4.0000 in
• Length Through Bore: 3.625 in
• Storage Dimension Width: 13.2 in
• Storage Dimension Height: 3.625 in
• Storage Dimension Length: 13.2 in
