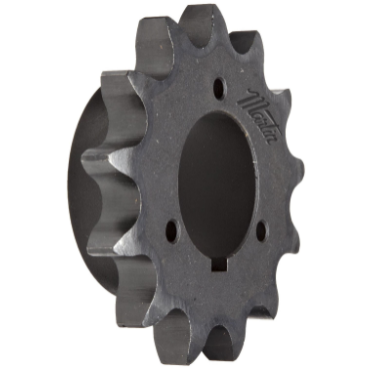

Martin 80Q17H Bushing Bore Roller Chain Sprocket - Split Taper, 80 / 1 in, 17 Teeth, Q1 Bushing

Product Description

The Martin 80Q17H is a bushing bore roller chain sprocket featuring a split taper design and made of high carbon steel. With seventeen teeth and a pitch diameter of five point four four two two inches, this sprocket meets ANSI standards for high performance. The split taper bushing offers versatility with a bore range from three fourths to two and eleven sixteenths inches.

• Manufactured of high carbon steel
• Meets ANSI standards for precise tolerances
• Interchangeable with other manufacturers' split-taper bushings

Product Highlights

This roller chain sprocket provides enhanced durability and longevity for chain systems.

Product Information

Standard Information

• Brand: Martin
• Product SKU: 02249297
• Country Of Origin: United States
• Min Order Qty: 1
• UOM: EACH

Technical Specifications

• Tooth Width: 0.575 in
• Hub Diameter: 4-1/8 in
• Overall Width: 2-25/32 in
• Pitch Diameter: 5.4422 in
• Number Of Teeth: 17
• Outside Diameter: 5.9500 in
• Caliper Diameter: 4.7940 in
• Bushing Bore Range: 3/4 to 2-11/16 in
• Length Through Bore: 1.7500 in
• Chain Number & Pitch: 80 / 1 in
• Surface Treatment: Protective Coating
• Number Of Hubs: 1
• Storage Dimension Width: 6.3125 in
• Storage Dimension Height: 1.8750 in
• Storage Dimension Length: 6.3125 in
