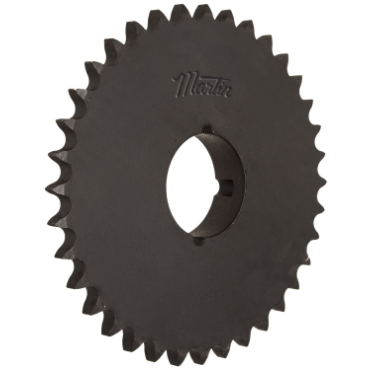

Martin 80BTB35 Bushing Bore Roller Chain Sprocket - Taper Locking, 80 / 1 in, 35 Teeth, 2517 Bushing

Product Description

The Martin 80BTB35 Bushing Bore Roller Chain Sprocket is designed for use in mechanical power transmission systems. This sprocket features a taper locking mechanism, which provides a reliable fit on the shaft. It has a chain number and pitch of 80 / 1 inch, with thirty-five teeth and a bushing size of 2517. Made from steel, this component is suitable for demanding applications.

• Uses a taper bushing for a secure grip
• Manufactured to meet ANSI standards
• Designed for standard roller chains

Product Highlights

The Martin 80BTB35 sprocket integrates precision engineering with high-strength materials, enhancing durability and performance in power transmission tasks.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Pitch Type: Single
• Tooth Width: 0.575 inches
• Hub Diameter: 4-1/4 inches
• Overall Width: 1-3/4 inches
• Number Of Hubs: 1
• Number Of Teeth: 35
• Pitch Diameter: 11.1558 inches
• Outside Diameter: 11.7110 inches
• Storage Dimension Width: 11.711 inches
• Storage Dimension Height: 1.75 inches
• Storage Dimension Length: 11.711 inches
• Surface Treatment: Protective Coating
• Bushing Bore Range: 1/2 to 2-1/2 inches
• Chain Number & Pitch: 80 / 1 inch
• Chain / Sprocket Type: Standard Roller Chain
