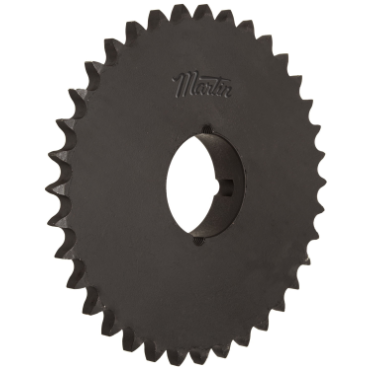

Martin 80BTB30 Bushing Bore Roller Chain Sprocket - Taper Locking, 80 / 1 in, 30 Teeth, 2517 Bushing

Product Description

The Martin 80BTB30 is a bushing bore roller chain sprocket designed for standard roller chain applications. This sprocket features a taper locking mechanism which ensures a secure fit to the shaft, enhancing performance and longevity. The design accommodates a bushing bore range from half inch to two and a half inches.

• Tapered bushing for secure grip
• Manufactured from high carbon steel
• Meets ANSI standards for tolerance

Product Highlights

This sprocket is built for durability and precision. The chain teeth are designed with parallel spacing, promoting extended use. The precise machining processes ensure a consistent finish, enhancing overall reliability.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 80BTB30
• Tooth Width: 0.575 in
• Hub Diameter: 4-1/4 in
• Overall Width: 1-3/4 in
• Pitch Diameter: 9.5668 in
• Number Of Teeth: 30
• Outside Diameter: 10.1140 in
• Chain Number & Pitch: 80 / 1 in
