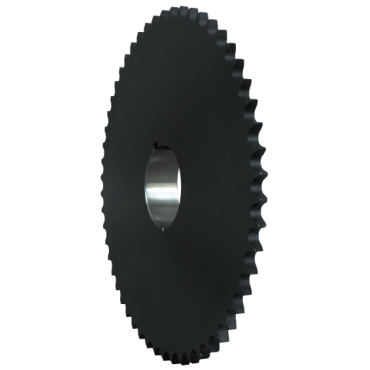

Martin 80BTB22 Bushing Bore Roller Chain Sprocket - Taper Locking, 80 / 1 in, 22 Teeth, 2517 Bushing

Product Description

The Martin 80BTB22 is a bushing bore roller chain sprocket designed for efficient and reliable power transmission. This sprocket features a taper locking design that ensures a secure fit onto the shaft, enhancing performance during operation. With a tooth count of 22 and a chain pitch of one inch, it is suitable for various mechanical applications.

• Taper locking mechanism with a strong grip
• Constructed from high-carbon steel for durability
• Meets or exceeds ANSI standards

Product Highlights

This sprocket is ideal for use in mechanical power transmission systems, providing smooth operation and extended longevity. The precise machining of this sprocket guarantees a consistent finish and high quality.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: 80BTB22
• Tooth Width: 0.575 inches
• Hub Diameter: 4.25 inches
• Overall Width: 1.75 inches
• Pitch Diameter: 7.0267 inches
• Number of Teeth: 22
• Bushing Bore Range: 0.5 to 2.5 inches
• Chain Number & Pitch: 80 / 1 inch
