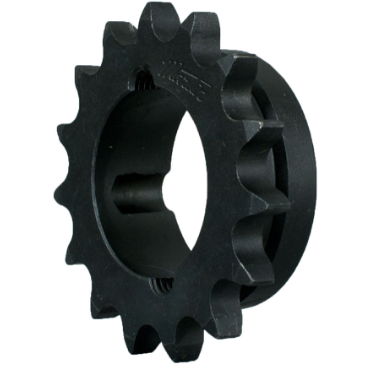

Martin 80BTB16H Bushing Bore Roller Chain Sprocket - Taper Locking, 80 / 1 in, 16 Teeth, 2012 Bushing

Product Description

The Martin 80BTB16H is a bushing bore roller chain sprocket designed for precise and efficient power transmission. This sprocket accommodates a taper locking system ensuring secure attachment to the shaft. Crafted from high carbon steel, the 80BTB16H offers durability and resistance to wear, making it suitable for various industrial applications.

• Constructed from high carbon steel for durability
• Compatible with chains that have a pitch of 80 / 1 inch
• Features hardened teeth for extended lifespan

Product Highlights

This sprocket is ideal for mechanical power transmission tasks in manufacturing and heavy-duty applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 80BTB16H

Technical Specifications

• Tooth Count: 16
• Overall Width: 1.25 inches
• Hub Diameter: 4 inches
• Chain Roller Width: 0.625 inches
• Pitch Diameter: 5.1258 inches
• Outside Diameter: 5.627 inches
• Chain Number & Pitch: 80 / 1 inch
• Storage Dimensions: 6 inches x 6 inches x 1.3125 inches
