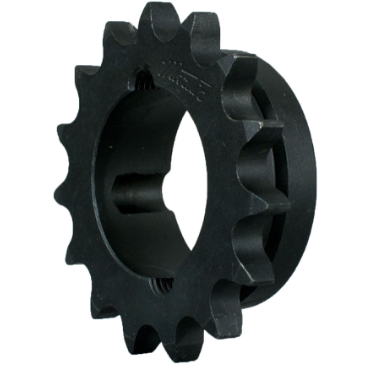

Martin 80BTB15H Bushing Bore Roller Chain Sprocket - Taper Locking, 80 / 1 in, 15 Teeth, 1615 Bushing

Product Description

The Martin 80BTB15H is a bushing bore roller chain sprocket designed for efficient power transmission. This sprocket features a unique taper locking design that ensures a secure fit on the shaft. It is made from high carbon steel for durability.

• Designed for standard roller chain applications
• 15 teeth configuration enhances performance
• Compatible with various taper bushings

Product Highlights

The Martin 80BTB15H sprocket is built for reliability and durability in mechanical power transmission applications.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: 80BTB15H
• Pitch Type: Single
• Chain / Sprocket Type: Standard Roller Chain
• Number of Teeth: 15
• Tooth Width: 1.5 in
• Overall Width: 1.5 in
• Hub Diameter: 3.5 in
• Pitch Diameter: 4.8097 in
• Outside Diameter: 5.3050 in
• Caliper Diameter: 4.1584 in
• Bushing Bore Range: 1/2 to 1-5/8 in
• Chain Roller Width: 0.6250 in
