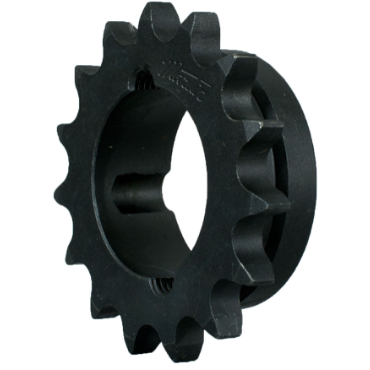

Martin 80BTB14H Bushing Bore Roller Chain Sprocket - Taper Locking, 80 / 1 in, 14 Teeth, 1615 Bushing

Product Description

The Martin 80BTB14H is a Bushing Bore Roller Chain Sprocket designed for use with standard roller chains. Its taper locking system allows for easy installation and a secure grip on the shaft. This sprocket has fourteen teeth and is made of high carbon steel, meeting stringent ANSI standards for quality and durability.

• Material: High carbon steel
• Pitch Type: Single
• Tooth Width: 1.5 inches

Product Highlights

The Martin 80BTB14H features hardened teeth and a protective coating for enhanced longevity. The design minimizes run-out and ensures consistent performance in various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: 80BTB14H
• Number of Teeth: 14
• Pitch Diameter: 4.4940 inches
• Outside Diameter: 4.9810 inches
• Hub Diameter: 3-11/32 inches
• Tooth Thickness: 0.5750 inches
• Chain Number & Pitch: 80 / 1 inch
• Bushing Bore Range: 1/2 to 1-5/8 inches
