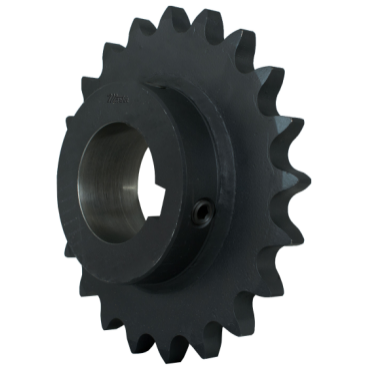

Martin 80BS201 Bored to Size Sprocket - 80 / 1 in

Product Description

The Martin 80BS201 is a bored to size sprocket designed for standard roller chain applications. This sprocket features a one inch bore and twenty teeth, allowing for effective power transmission in various mechanical systems.

• Manufactured from high carbon steel
• Includes keyways and setscrews
• Concentric bore minimizes run out

Product Highlights

This sprocket is ideal for use in mechanical power transmission and chain and sprocket systems, helping to ensure reliable and efficient operation.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 80BS201
• Bore Diameter: 1.0000 in
• Number Of Teeth: 20
• Tooth Width: 0.575 in
• Hub Diameter: 4-1/4 in
• Pitch Diameter: 6.3925 in
• Outside Diameter: 6.9140 in
• Length Through Bore: 1.5000 in
• Chain Number & Pitch: 80 / 1 in
• Surface Treatment: Protective Coating
• Number Of Hubs: 1
• Storage Dimension Length: 6.9140 in
• Storage Dimension Width: 6.9140 in
• Storage Dimension Height: 1.5 in
