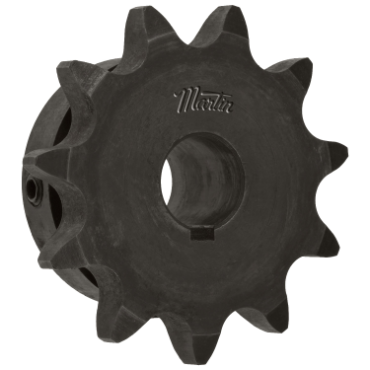

Martin 80BS1611/2 Bored to Size Sprocket - 1 in - 16 Teeth

Product Description

The Martin 80BS1611/2 is a bored to size sprocket designed for use with standard roller chains. This product features a one and a half inch bore and has sixteen teeth, making it suitable for various mechanical power transmission applications.

• 1.5-inch bore diameter
• 16 teeth configuration
• Manufactured from high carbon steel

Product Highlights

This sprocket is made with precise machining, ensuring a consistent finish. Ideal for mechanical power transmission, it features two setscrews for secure installation on the shaft.

Product Information

Standard Information

• Brand: Martin
• MPN: 80BS1611/2

Technical Specifications

• Pitch Type: Single
• Bore Diameter: 1.5000 inches
• Number of Teeth: 16
• Hub Diameter: 4 inches
• Pitch Diameter: 5.1258 inches
• Outside Diameter: 5.6270 inches
• Length Through Bore: 1.5000 inches
• Tooth Width: 0.575 inches
• Chain Number & Pitch: 80 / 1 inch
• Surface Treatment: Protective Coating
• Storage Dimension Width: 5.7500 inches
• Storage Dimension Height: 1.5625 inches
• Storage Dimension Length: 5.7500 inches
