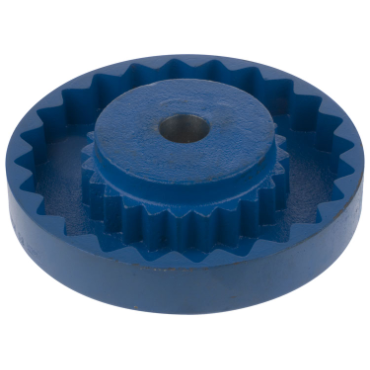

Martin 7S17/16 QUADRA-FLEX Coupling Flange

Product Description

The Martin 7S17/16 QUADRA-FLEX Coupling Flange is designed for use in mechanical power transmission applications. The flanges are bored to size, making them suitable for installation on standard shafts. Constructed from high-strength cast iron, these flanges ensure durability and reliability in various industrial settings.

• Constructed from high-strength cast iron.
• Bored to fit standard shafts.
• Easy installation and removal.

Product Highlights

The QUADRA-FLEX Coupling Flange is ideal for applications requiring efficient power transmission with minimal noise and vibration. It offers versatility and is a reliable solution for various mechanical systems.

Product Information

Standard Information

• Weight: 2.6 LB
• Country of Origin: United States

Technical Specifications

• Keyway Size: 3/8 x 3/16
• Bore Size: 1.4375 in - 1 7/16 in
• Hub Diameter: 2 13/16 in
• Outside Diameter: 4 5/8 in
• Max RPM: 5,250 rpm
• Set Screw: Yes
• Length Through Bore: 1 27/32 in
• Hub Length: 11/16 in
