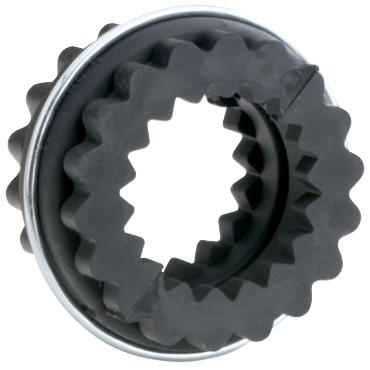

Martin 7EM QUADRA-FLEX Coupling Sleeve

Product Description

The Martin 7EM QUADRA-FLEX Coupling Sleeve is designed for use in various mechanical applications. It features two flanges with internal teeth that securely engage an elastomeric flexible sleeve. The installation process is straightforward and does not require maintenance or lubrication.

• Size 7 Coupling Sleeve
• Temperature range: -50 °F to 275 °F
• Dampens vibrations and controls shock

Product Highlights

This coupling sleeve is torsionally soft and allows for double engagement, making it suitable for a range of rotational applications.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814367

Technical Specifications

• Color: Black
• Coupling Size: 7
• Insert Style: Two Piece
• Torsional Stiffness: 2769 inch pounds/radian
• Max RPM: 5,250 rpm
• Sleeve Type: EM
• Temperature Range: -50 °F to 275 °F
• Outside Diameter: 4 11/16 inches
• Material: TPR
• HP @ RPM: 20 hp @ 1800 rpm
• Max Torque Rating: 725.0 inch lb
• Weight: 1.0 lb
• EAN/UPC: 697950277097
