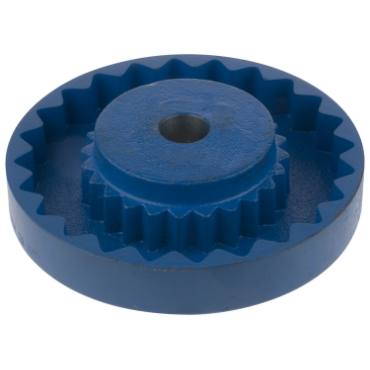

Martin 6S 1 5/8 | QUADRA-FLEX® Coupling Flange

Product Description

The Martin 6S 1 5/8 QUADRA-FLEX® Coupling Flange is designed to connect various shafts effectively. This coupling flange is built from durable cast iron and is suitable for a wide range of industrial applications where reliable performance is required.

• Compatible Bore Size of 1.625 inches
• Rated for a maximum RPM of 6,000
• Includes a setscrew for secure fastening

Product Highlights

This coupling flange can accommodate a bore type that is finished, ensuring a smooth connection. It is ideal for mechanical power transmission systems and is frequently used in motor and pump applications.

Product Information

Standard Information

• Brand: Martin
• Material: Cast Iron

Technical Specifications

• Outside Diameter: 4 inches
• Hub Diameter: 2.5 inches
• Hub Length: 17/32 inches
• Bore Type: Finished Bore
• Length Through Bore: 1 5/16 inches
• Set Screw: Yes
• Bore Size: 1.625 inches - 1 5/8 inches
• Keyway Size: 3/8 x 1/8
• Max RPM: 6,000
• Lock Type: Setscrew
• Weight: 1.8 lb
• EAN or UPC: 697950277011
