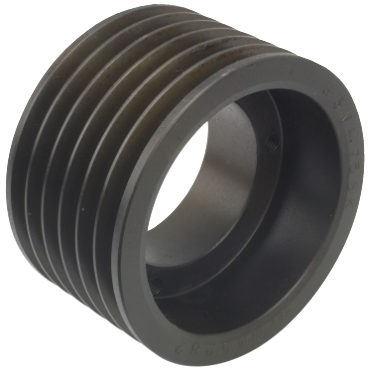

Martin 65V975E Bushing Bore V-Belt Pulley - 5V Belt Section, 6 Groove, 9.65 in Pitch Dia., 9.75 in O.D.

Product Description

The Martin 65V975E is a bushing bore V-belt pulley designed for the 5V belt section. This pulley features six grooves and a pitch diameter of nine point sixty-five inches. With an outside diameter of nine point seventy-five inches, it is built with cast iron material, ensuring durability and reliability in mechanical power transmission applications.

• Cast iron construction for strength and durability.
• Interchangeable with various manufacturers' QD bushings.
• Precision machining for a high-quality finish.

Product Highlights

This pulley is suitable for a wide range of power transmission systems, ensuring effective performance and reliability in demanding applications.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 34.7 lbs
• Face Width: 4.4375 in
• Overall Width: 4 7/16 in
• Pitch Diameter: 9.65 in
• Outside Diameter: 9.7500 in
• Number Of Grooves: 6
• Bushing Series: E
• Bushing Bore Range: 0.8750 to 3.3125 in
• Length Through Bore: 2.625 in
