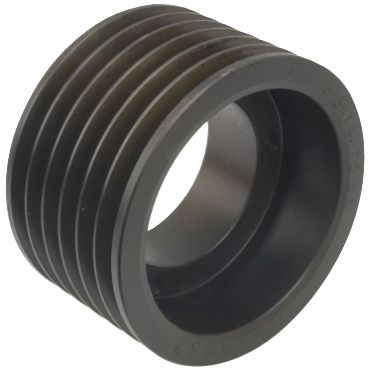

Martin 65V670SF Bushing Bore V-Belt Pulley - 5V Belt Section, 6 Groove, 6.6 in Pitch Dia., 6.7 in O.D., Bushed, SF Series Bushing

Product Description

The Martin 65V670SF is a bushing bore V-belt pulley designed for reliable performance in mechanical power transmission systems. This pulley is made from cast iron and is suitable for use with 5V belt sections. It features six grooves and has a pitch diameter of six point six inches.

• Constructed from durable cast iron material
• Accommodates bushings from 0.5000 to 2.9375 inches
• Compatible with various manufacturer's QD bushings

Product Highlights

This pulley is statically balanced and marked with the maximum rim speed. It offers precise machining for consistent quality.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Weight: 14.00 lbs
• Material: Cast Iron
• Bore Type: Bushed
• Face Width: 4.4375 inches
• Mounting Type: Reversible
• Overall Width: 4.4375 inches
• Bushing Series: SF
• Pitch Diameter: 6.6 inches
• Outside Diameter: 6.7 inches
• Belt Section Size: 5V
• Number Of Grooves: 6
• Bushing Bore Range: 0.5000 to 2.9375 inches
• Length Through Bore: 2.0625 inches
• Pulley Construction: Solid
• Sheave Drawing Type: A
• Manufacturer UPC Number: 697950119984
