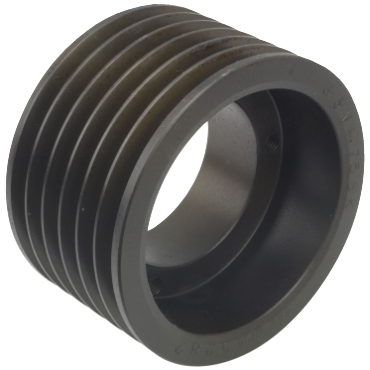

Martin 65V1320F Bushing Bore V-Belt Pulley - 5V Belt Section, 6 Groove, 13.1 in Pitch Dia., 13.2 in O.D.

Product Description

The Martin 65V1320F is a Bushing Bore V-Belt Pulley designed for use with a 5V belt section. This pulley features six grooves and has a pitch diameter of thirteen point one inches. Its outside diameter is thirteen point two inches, making it suitable for various mechanical power transmission applications.

• Interchangeable with other manufacturer's QD bushings
• Constructed from Class 30 Gray Iron
• Statically balanced for maximum rim speed

Product Highlights

This pulley adheres to industry tolerances and is precisely machined to ensure a consistent finish. It is designed for durability and high-quality performance in demanding environments.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 48.20 lbs
• Face Width: 4.4375 in
• Overall Width: 4 7/16 in
• Pitch Diameter: 13.1 in
• Outside Diameter: 13.2000 in
• Number Of Grooves: 6
• Bushing Series: F
• Bushing Bore Range: 1.0000 to 4.0000 in
• Length Through Bore: 3.625 in
• Manufacturer UPC Number: 697950119809
