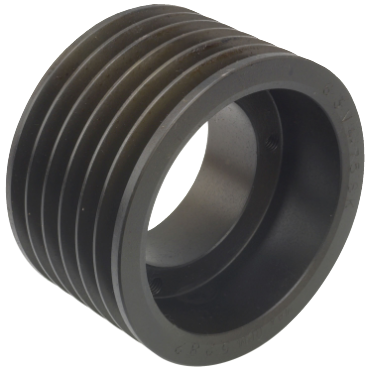

Martin 65V1250F Bushing Bore V-Belt Pulley - 5V Belt Section, 6 Groove, 12.4 in Pitch Dia., 12.5 in O.D., F Series Bushing

Product Description

The Martin 65V1250F is a bushing bore V-belt pulley designed for the 5V belt section. It features six grooves and has a pitch diameter of 12.4 inches, and an outside diameter of 12.5 inches. Constructed from cast iron material, this pulley utilizes F series bushings for reliable performance in various applications.

• Interchangeable with other manufacturer’s QD bushings
• Class 30 Gray Iron ensures durability
• Statically balanced for smooth operation

Product Highlights

This pulley is suitable for high-capacity applications and offers precise machining with tolerances that adhere to industry standards.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Weight: 48.60 lbs
• Face Width: 4.4375 inches
• Overall Width: 4.4375 inches
• Pitch Diameter: 12.4 inches
• Outside Diameter: 12.5 inches
• Number of Grooves: 6
• Bushing Series: F
• Bushing Bore Range: 1.0000 to 4.0000 inches
