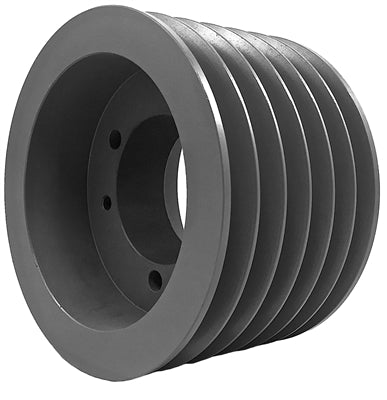

Martin 65V1130E Bushing Bore V-Belt Pulley 5V Belt Section 6 Groove 11.2 in Pitch Dia.

Product Description

The Martin 65V1130E is a bushing bore V-belt pulley designed for 5V belt sections, featuring six grooves. This pulley has a pitch diameter of eleven point two inches and an outside diameter of eleven point three inches. It is made from cast iron, ensuring durability and strength for mechanical power transmission.

• Interchangeable with other manufacturer’s QD bushings
• Manufactured from Class 30 gray iron
• Statically balanced for high rim speed

Product Highlights

This V-belt pulley is suitable for various applications in mechanical power transmission. It adheres to industry tolerances and ensures consistent quality through precise machining.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 41.90 lbs
• Face Width: 4.4375 in
• Overall Width: 4 7/16 in
• Pitch Diameter: 11.2 in
• Outside Diameter: 11.3000 in
• Number Of Grooves: 6
• Bushing Bore Range: 0.8750 to 3.3125 in
• Length Through Bore: 2.625 in
