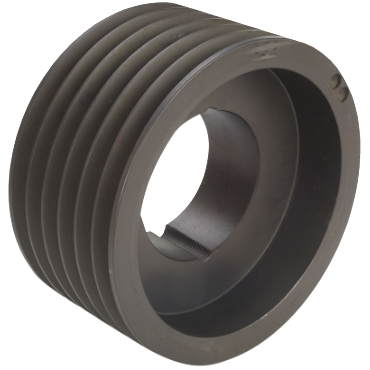

Martin 63V530TB 3V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

Martin 63V530TB is a sheave designed for industrial applications. It is suitable for use with 3V belts and features a tapered bushing for effective power transmission.

• 3V belt size
• 6 grooves
• 5.3 inches outside diameter

Product Highlights

This sheave is compatible with standard taper bushings and offers a reliable solution for various mechanical systems.

Product Information

Standard Information

• Brand: Martin
• MPN: 63V530TB

Technical Specifications

• Bushing Part Number: 2517
• Overall Length: 2.72 inches
• Outside Diameter: 5.30 inches
• Bore Type: Bushed
• Material: Cast Iron
• Bushing Mount: Standard
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 2.5 inches
• Belt Match: 1, 6
• Length Through Bore: 1.75 inches
• Belt Size: 3V
• Type: Solid
• Pitch Diameter: 5.25 inches
• No. of Grooves: 6
• K: 0 inches
• Inch/Metric: Inch
• Bushing Series: 2517
• Weight: 6.5 lbs
• EAN or UPC: 697950157719
