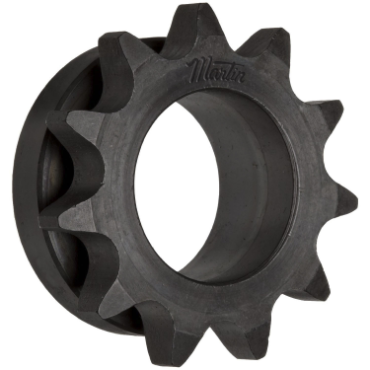

Martin 60Q20H Bushing Bore Roller Chain Sprocket - Split Taper, 60 / 3/4 in, 20 Teeth, Q1 Bushing

Brand: MARTIN
SKU: 60Q20H
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Martin 60Q20H is a bushing bore roller chain sprocket designed for standard roller chains. This sprocket features a split taper bushing, which accommodates a wide range of bore sizes. The construction ensures reliable performance in mechanical power transmission applications.

  • Manufactured from high carbon steel for durability
  • Meets or exceeds ANSI standards
  • Interchangeable with other manufacturers' split-taper bushings

Product Highlights

This sprocket offers enhanced longevity due to its precise machining and high-quality finish. Chain rows are parallel and spaced correctly to reduce wear, and its bores are aligned to minimize runout.

Product Information

Standard Information

  • Brand: Martin
  • Country of Origin: United States
Technical Specifications
Pitch Type
Single
Tooth Width
0.459 in
Hub Diameter
4-1/8 in
Overall Width
2-25/32 in
Pitch Diameter
4.7943 in
Number of Teeth
20
Outside Diameter
5.1850 in
Surface Treatment
Protective Coating
Bushing Bore Range
3/4 to 2-11/16 in
Chain Number & Pitch
60 / 3/4 in
Length Through Bore
1.7500 in
Storage Dimension Width
5.5000 in
Storage Dimension Height
2.0625 in
Storage Dimension Length
5.5000 in
