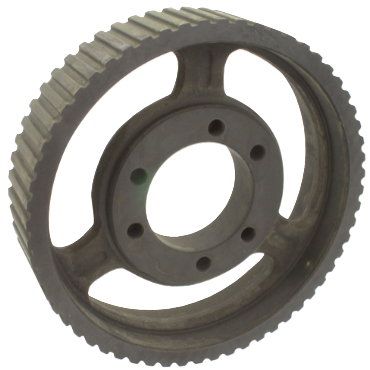

Martin 60L075SD L Series, 3/8 Pitch QD Timing Pulley

Product Description

The Martin 60L075SD is a timing pulley designed for precision and reliability in various applications. With a pitch of three-eighths of an inch and a width of three-quarters of an inch, this pulley features sixty teeth and an outer diameter of seven point one three five inches. Its design ensures smooth interaction with timing belts, minimizing friction and wear.

• Constructed from durable cast iron
• Compatible with SD bushing series
• Quick disconnect bushing type for easy installation

Product Highlights

This pulley operates at a constant speed, providing a non-slip performance with minimum backlash.

Product Information

Standard Information

• Pitch Diameter: 7.162 inches
• Busing Series: SD

Technical Specifications

• Hub Type: C
• Finished Bore: N/A
• Hardened Teeth: Without Hardened Teeth
• Hub Diameter: 3.375 inches
• Bore Range [Max]: 2 inches
• Outside Diameter: 7.135 inches
• Belt Size: L
• Belt Width: 0.75 inches
• Bore Range [Min]: 0.5 inches
• Length Through Bore: 1.25 inches
• Material: Cast Iron
• Hub Projection: 0.13 inches
• Number of Teeth: 60
• Belt Pitch: 3/8 inches
• Bore Type: Bushed
• Bushing Type: Quick Disconnect
• Weight: 5.1 pounds
• EAN or UPC: 697950152400
