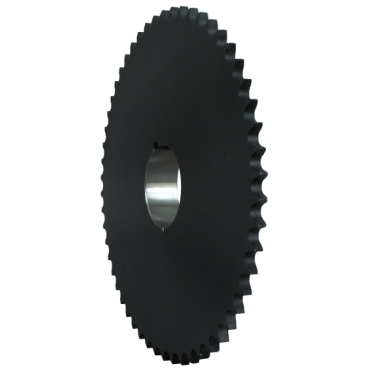

Martin 60BTB70 Bushing Bore Roller Chain Sprocket - Taper Locking, 60 / 3/4 in, 70 Teeth, 2517 Bushing, Steel Material

Product Description

The Martin 60BTB70 Bushing Bore Roller Chain Sprocket is designed for use with standard roller chains. It features a taper locking mechanism that provides a secure fit on the shaft. This sprocket has seventy teeth and is compatible with chain sizes of sixty and three-fourths inch.

• Constructed from high carbon steel for durability.
• Meets or exceeds ANSI standards for quality.
• Precision machined for consistent performance.

Product Highlights

This product is suitable for various mechanical power transmission applications. The taper bushings allow for easy installation and removal, enhancing maintenance efficiency.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 60BTB70
• Pitch Type: Single
• Number Of Teeth: 70
• Tooth Width: 0.459 inches
• Hub Diameter: 4.25 inches
• Overall Width: 1.75 inches
• Pitch Diameter: 16.7169 inches
• Outside Diameter: 17.1500 inches
• Length Through Bore: 1.7500 inches
• Chain Number & Pitch: 60 / 3/4 inches
• Surface Treatment: Protective Coating
• Bushing Bore Range: 0.5 to 2.5 inches
• Number Of Hubs: 1
• Caliper Diameter: 16.2479 inches
• Storage Dimension Width: 17.15 inches
• Storage Dimension Height: 1.75 inches
• Storage Dimension Length: 17.15 inches
