Martin 60BTB60 Bushing Bore Roller Chain Sprocket - Taper Locking, 60 / 3/4 in, 60 Teeth, 2517 Bushing, Steel Material

Product Description

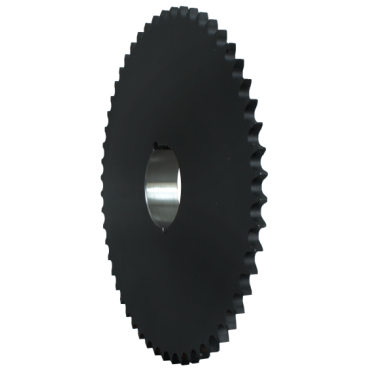

The Martin 60BTB60 is a bushing bore roller chain sprocket made from steel. This sprocket features a taper locking design for secure installation and a total of sixty teeth. It is compatible with standard roller chains sized at 60 / 3/4 inches. The sprocket comes with a 2517 bushing, ensuring a reliable and tight fit.

• Steel construction offers durability and longevity.
• Taper bushings provide a secure grip on the shaft.
• Compatible with ANSI standards for precise performance.

Product Highlights

The Martin 60BTB60 sprocket meets high standards for quality and performance. Its tapered design compresses onto the shaft, providing a strong fit to minimize wear and increase lifespan.

Product Information

Standard Information

• Made In: United States
• Minimum Order Quantity: 1

Technical Specifications

• Tooth Width: 0.459 in
• Hub Diameter: 4-1/4 in
• Overall Width: 1-3/4 in
• Pitch Diameter: 14.3305 in
• Number Of Teeth: 60
• Caliper Diameter: 13.8615 in
• Outside Diameter: 14.7610 in
• Surface Treatment: Protective Coating
• Bushing Bore Range: 1/2 to 2-1/2 in
• Length Through Bore: 1.7500 in
• Chain / Sprocket Type: Standard Roller Chain
• Number Of Hubs: 1
• Number Of Strands Across: 1
• Storage Dimensions: 14.761 in Width, 1.75 in Height, 14.761 in Length
