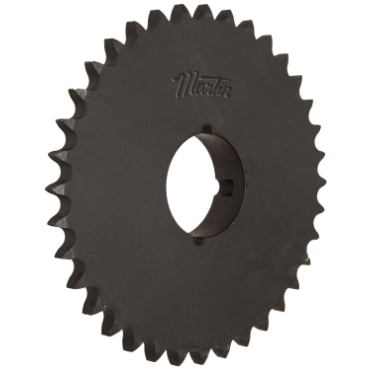

Martin 60BTB32 Bushing Bore Roller Chain Sprocket - Taper Locking, 60 / 3/4 in, 32 Teeth, 2012 Bushing

Product Description

The Martin 60BTB32 is a taper locking bushing bore roller chain sprocket designed for efficient power transmission. It features a tapered bushing that tightens around the shaft when installed, ensuring a secure fit. This sprocket is made of high carbon steel and meets ANSI standards for quality and durability.

• Tapered bushing for secure attachment
• Manufactured from high carbon steel
• Compatible with standard roller chain specifications

Product Highlights

This sprocket is engineered to deliver durability and long service life, making it a reliable choice for mechanical power transmission applications.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 60BTB32
• Tooth Width: 0.459 inches
• Hub Diameter: 3-9/16 inches
• Overall Width: 1-1/4 inches
• Pitch Diameter: 7.6517 inches
• Number Of Teeth: 32
• Outside Diameter: 8.0650 inches
• Bushing Bore Range: 1/2 to 2 inches
