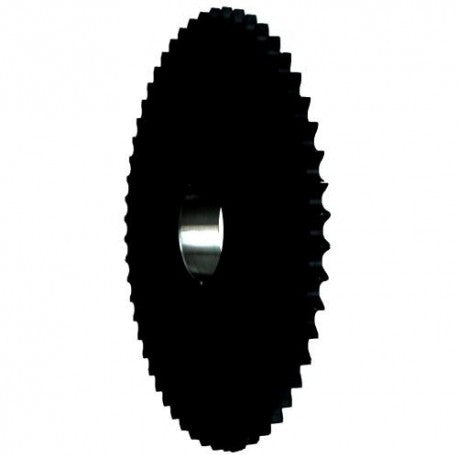

Martin 60BTB24 Bushing Bore Roller Chain Sprocket - Taper Locking, 60 / 3/4 in, 24 Teeth, 2012 Bushing

Product Description

The Martin 60BTB24 is a bushing bore roller chain sprocket designed for standard roller chains. This sprocket features twenty-four teeth and is made with high carbon steel for durability. It’s compatible with a chain size of 60 and has a pitch of three-fourths of an inch, making it ideal for various mechanical power transmission applications.

• Taper bushed design for secure fit
• Meets ANSI standards for tolerances
• Compatible with various manufacturers' taper bushings

Product Highlights

The Martin 60BTB24 sprocket delivers reliable performance in demanding conditions and ensures consistent operation through precise machining.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Pitch Type: Single
• Number Of Teeth: 24
• Hub Diameter: 3-9/16 inches
• Pitch Diameter: 5.7460 inches
• Caliper Diameter: 5.2770 inches
• Outside Diameter: 6.1470 inches
• Tooth Width: 0.459 inches
• Length Through Bore: 1.2500 inches
• Overall Width: 1-1/4 inches
• Chain Number & Pitch: 60 / 3/4 inch
• Number Of Hubs: 1
• Surface Treatment: Protective Coating
• Bushing Bore Range: 1/2 to 2 inches
• Storage Dimension Width: 6.147 inches
• Storage Dimension Height: 1.25 inches
• Storage Dimension Length: 6.147 inches
