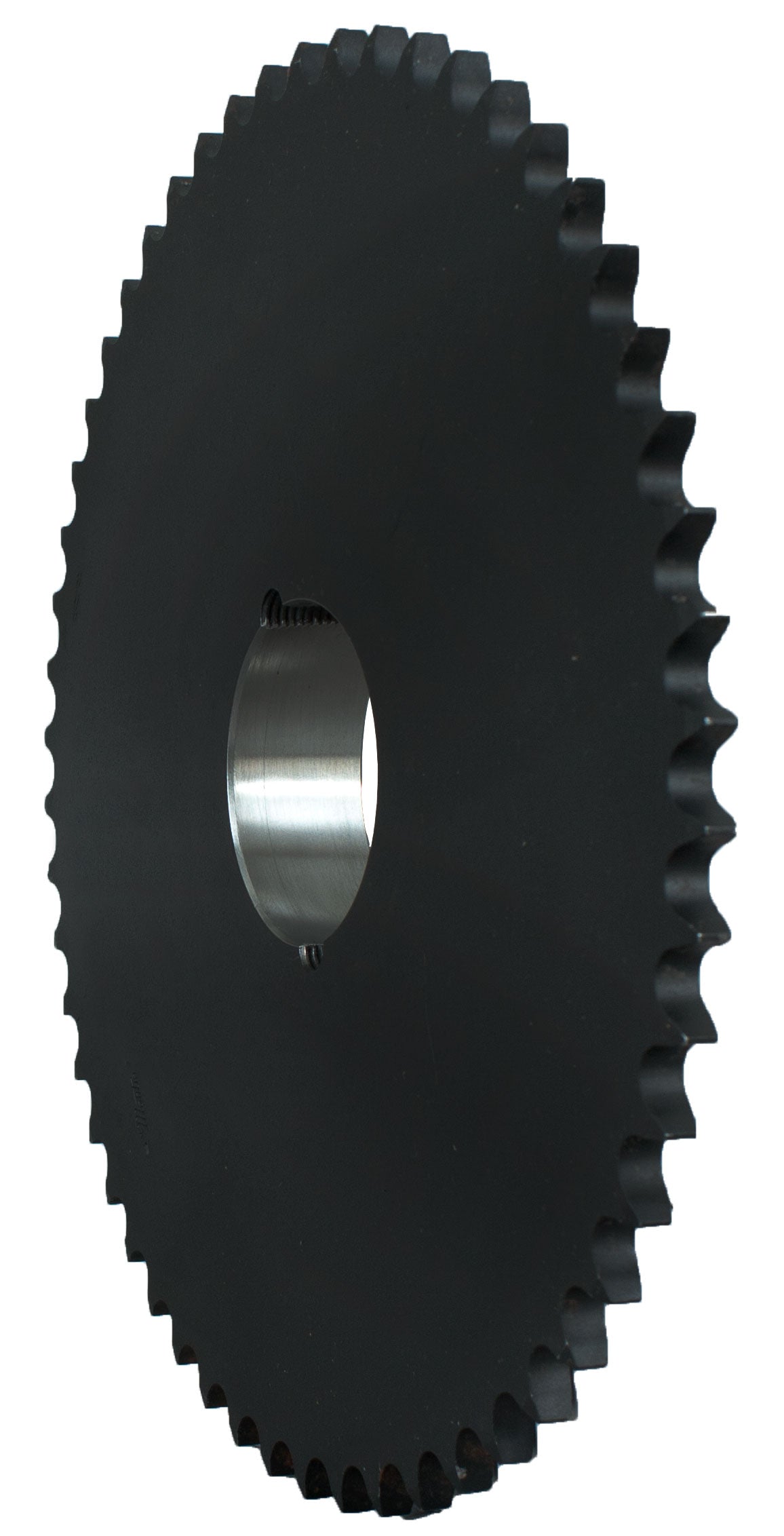

Martin 60BTB23H MSG Single Pitch Roller Chain Sprocket 5.907 in OD

Product Description

The Martin Saber Tooth 60BTB23H is a taper bushed type B single pitch roller chain sprocket. This product features hardened teeth and is designed for #60 chain configurations. The sprocket has an outside diameter of five point nine zero seven inches, a pitch of three fourths of an inch, and contains twenty-three teeth. The taper bush provides an easy installation option for secure mounts.

• Made from high carbon steel for durability.
• Includes a 2012 taper lock bushing for secure fit.
• Manufactured with precision for optimal performance.

Product Highlights

This sprocket is ideal for various mechanical applications. Its hardened teeth ensure a longer life span and its design allows for easy maintenance.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Manufacturer Part Number: 60BTB23H

Technical Specifications

• Type: Taper Bushed Type B
• Pitch: 3/4 in
• Material: Steel
• Chain Size: #60
• Hub Diameter: 3.563 in
• Number of Teeth: 23
• Outside Diameter: 5.907 in
• Length Through Bore: 1-1/4 in
• Pitch Diameter: 5.508 in
• Country of Origin: US
