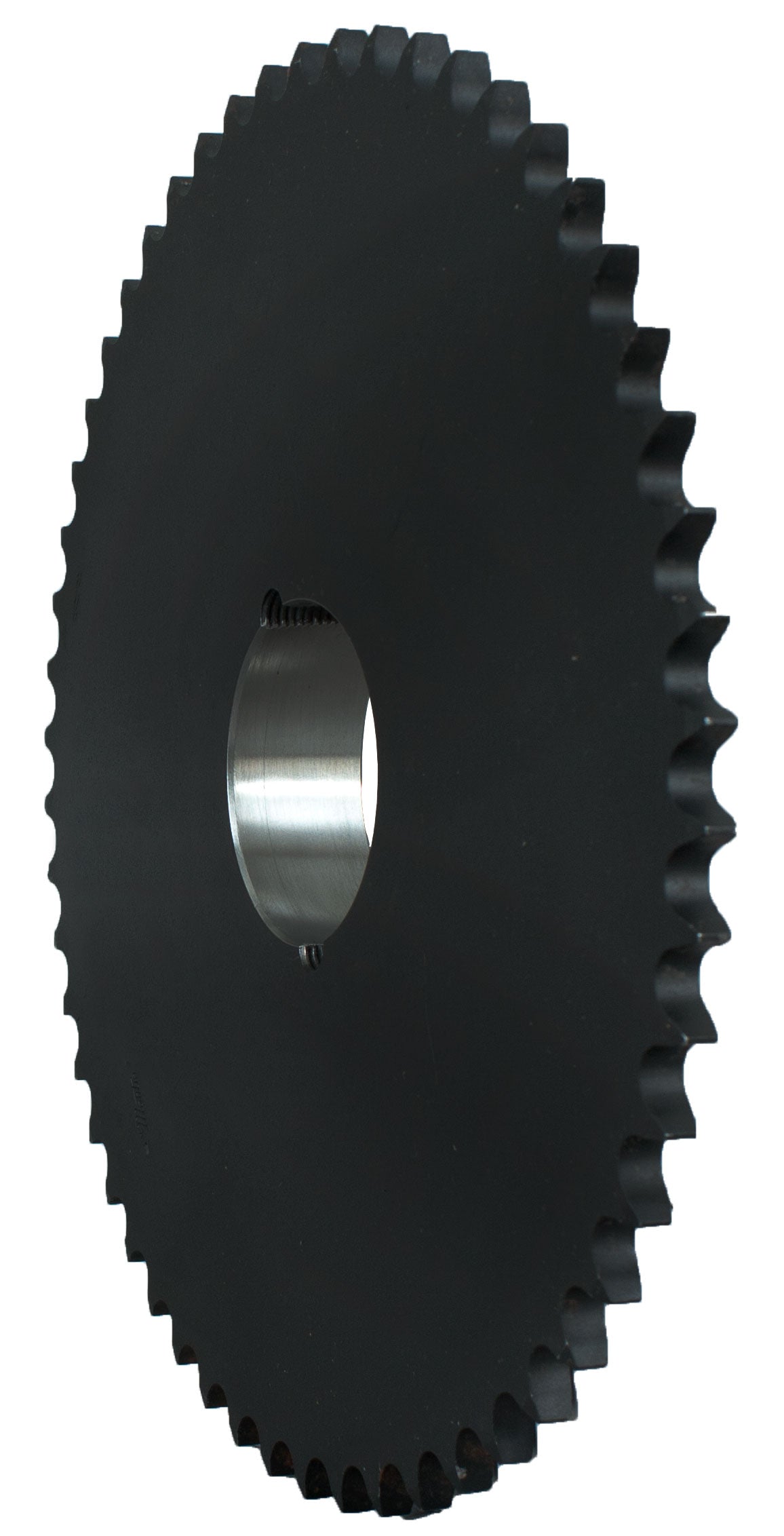

Martin 60BTB20H MSG Taper Bushed Type B Single Pitch Roller Chain Sprocket With Hardened Teeth

Product Description

The Martin Saber Tooth 60BTB20H MSG is a taper bushed type B single pitch roller chain sprocket. This sprocket features a hardened design that ensures reliable performance. It is designed to accommodate a #60 chain and is suitable for various power transmission applications. The sprocket has an outside diameter of 5.185 inches and consists of 20 teeth, making it ideal for numerous industrial applications.

• Hardened steel construction for durability
• Compatible with #60 chain
• Designed for optimal performance in power transmission systems

Product Highlights

This sprocket is built to provide efficient and reliable operation. Its taper bushed design allows for easy mounting and a secure fit on the shaft.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• Type: Taper Bushed Type B
• Pitch: 3/4 in
• Material: Steel
• Chain Size: #60
• Hub Diameter: 3.563 in
• Pitch Diameter: 4.794 in
• Number of Teeth: 20
• Outside Diameter: 5.185 in
• Length Through Bore: 1-1/4 in
• Bushing Type: 2012 Taper Lock
• Country of Origin: US
