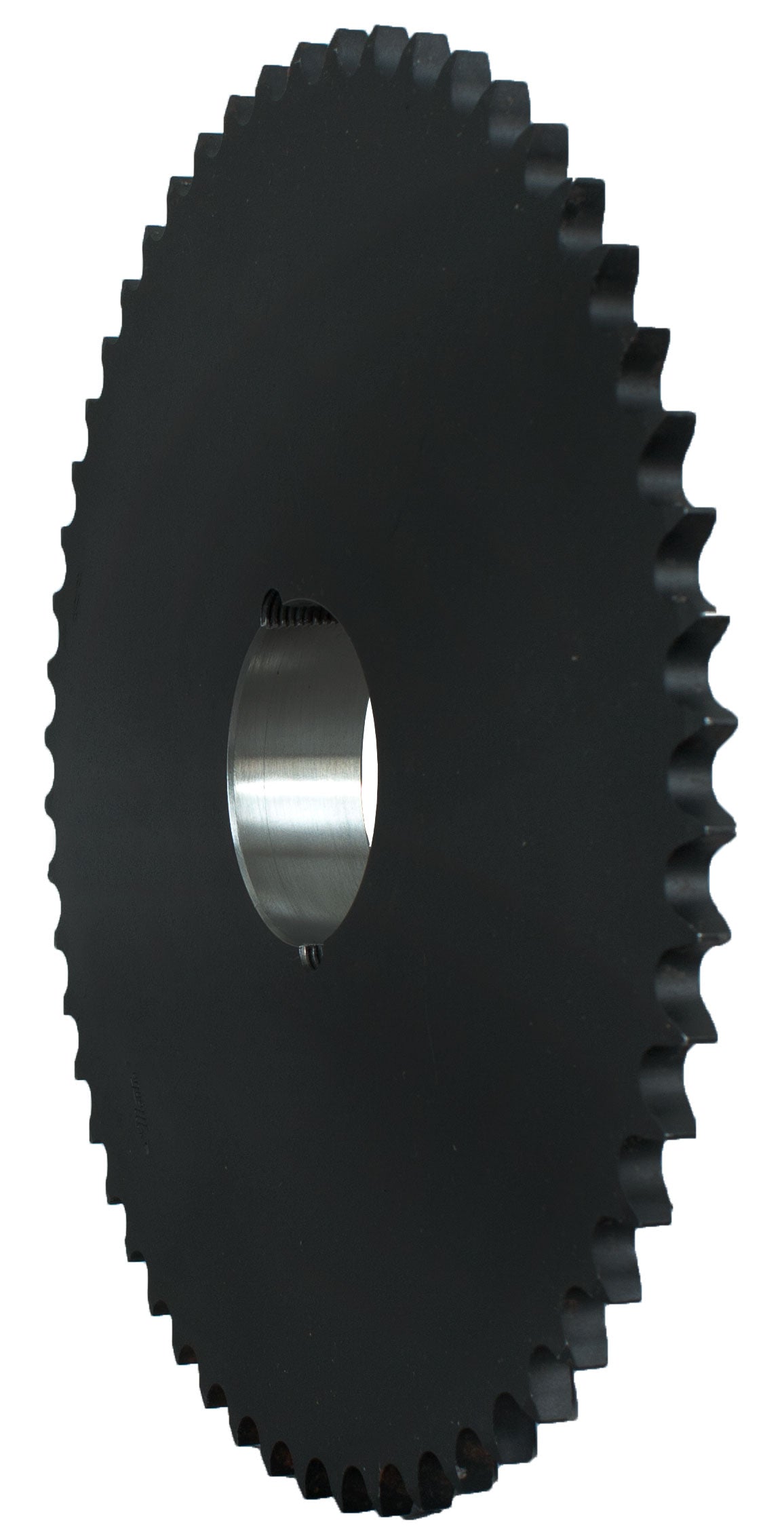

Martin 60BTB17H MSG Taper Bushed Type B Single Pitch Roller Chain Sprocket

Product Description

The Martin 60BTB17H MSG is a taper bushed type B single pitch roller chain sprocket designed for high performance. This sprocket features a hardened outer surface for added durability. It has an outside diameter of four point four six two inches, which ensures compatibility with #60 chains. The sprocket contains seventeen teeth and has a pitch of three quarters of an inch. This ensures smooth operation in various applications.

• Constructed from high carbon steel for durability.
• Designed for precise fit with a tapered bushing.
• Suitable for various industrial applications.

Product Highlights

The Martin 60BTB17H MSG is ideal for high load applications. The tapered design allows for easy installation and removal, which reduces downtime.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Manufacturer Part Number: 60BTB17H

Technical Specifications

• Pitch: 3/4 in
• Material: Steel
• Chain Size: #60
• Bushing Type: 1610 Taper Lock
• Hub Diameter: 3-1/4 in
• Pitch Diameter: 4.082 in
• Number of Teeth: 17
• Outside Diameter: 4.462 in
• Length Through Bore: 1 in
• Country of Origin: US
