Martin 60BTB14H Bushing Bore Roller Chain Sprocket - Taper Locking, 60 / 3/4 in, 14 Teeth, 1210 Bushing, Steel Material

Product Description

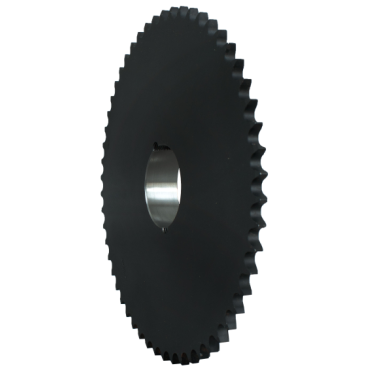

The Martin 60BTB14H is a bushing bore roller chain sprocket designed for robust mechanical power transmission. This sprocket features a taper locking mechanism and is crafted from high carbon steel, ensuring durability and longevity. It is suitable for use with a 60 / 3/4 inch chain and has fourteen teeth. The sprocket is manufactured to ANSI standards for quality assurance.

• Taper lock design for secure installation
• High carbon steel construction for strength
• Compatible with standard roller chains

Product Highlights

This product is ideal for machines requiring precise torque transfer and efficient chain operation.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Tooth Width: 1 inch
• Hub Diameter: 2-19/32 inches
• Pitch Diameter: 3.3705 inches
• Outside Diameter: 3.7360 inches
• Number of Teeth: 14
• Chain Roller Diameter: 0.4690 inches
• Length Through Bore: 1.0000 inches
• Surface Treatment: Protective Coating
• Bushing Bore Range: 1/2 to 1-1/4 inches
