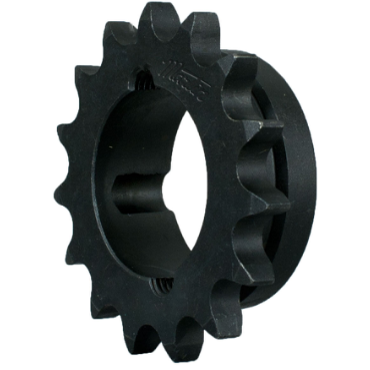

Martin 60BTB13H Bushing Bore Roller Chain Sprocket - Taper Locking, 60 / 3/4 in, 13 Teeth, 1210 Bushing, Steel Material

Product Description

The Martin 60BTB13H is a robust bushing bore roller chain sprocket designed for effective mechanical power transmission. This tapered locking sprocket is made from high carbon steel, ensuring durability and longevity. It features thirteen teeth and a pitch type of sixty, accommodating a chain size of three-quarter inch.

• Constructed from hardened high carbon steel
• Compatible with taper bushings for secure installation
• Meets ANSI standards for precision

Product Highlights

This sprocket is designed to work seamlessly with standard roller chains. The tapered design allows for easy mounting and dismounting.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: 60BTB13H
• Number Of Teeth: 13
• Pitch Diameter: 3.1339 inches
• Tooth Width: 1 inch
• Hub Diameter: 2.4688 inches
• Overall Width: 1 inch
• Chain Number & Pitch: 60 / 3/4 inch
• Surface Treatment: Protective Coating
