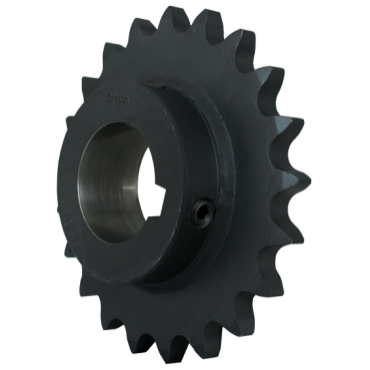

Martin 60BS60115/16 Bored to Size Sprocket - 60 / 3/4 in, Bored to Size, 1.9375 in Bore, 60 Teeth

Product Description

The Martin 60BS60115/16 is a bored to size sprocket known for its precision and durability. This sprocket features a bore diameter of 1.9375 inches and has sixty teeth, making it suitable for various mechanical power transmission applications.

• High carbon steel construction
• Includes keyways and setscrews
• Tolerances that meet or exceed ANSI standards

Product Highlights

This product is designed for efficiency and is shaft ready with keyways that align with the tooth centerline. Its construction ensures a consistent finish, supporting reliability in operations.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 60BS60115/16
• Weight: 23.00 lbs
• Material: Steel
• Bore Type: Bored to Size
• Pitch Type: Single
• Hub Diameter: 4-1/4 in
• Number Of Teeth: 60
• Bore Diameter: 1.9375 in
• Chain Number & Pitch: 60 / 3/4 in
• Outside Diameter: 14.7610 in
• Length Through Bore: 1.7500 in
• Storage Dimension Width: 14.7610 in
• Storage Dimension Height: 1.75 in
• Storage Dimension Length: 14.7610 in
• Surface Treatment: Protective Coating
• Keyway Size: 1/2 x 1/4 in
