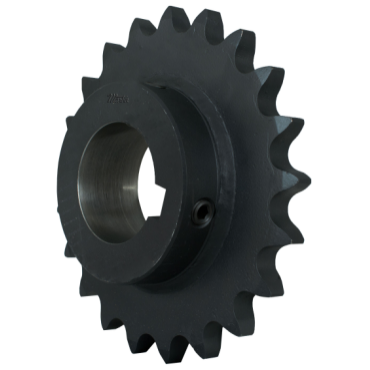

Martin 60BS502 Bored to Size Sprocket - 60 / 3/4 in

Product Description

The Martin 60BS502 is a bored to size sprocket designed for effective mechanical power transmission. Made from steel, this sprocket features a bore diameter of two inches and fits standard roller chain sizes of sixty and three-quarters inches. It is ideal for applications requiring precise alignment and minimal runout.

• Manufactured from high carbon steel
• Includes keyways and setscrews for easy installation
• Meets ANSI standards for tolerance and quality

Product Highlights

This finished bore sprocket is ready for direct installation onto a shaft and designed for longevity in various mechanical systems.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 60BS502
• Material: Steel
• Bore Type: Bored to Size
• Pitch Type: Single
• Bore Diameter: 2.0000 in
• Tooth Width: 0.459 in
• Hub Diameter: 4-1/4 in
• Pitch Diameter: 11.9445 in
• Number Of Teeth: 50
• Outside Diameter: 12.3710 in
• Length Through Bore: 1.2500 in
• Chain Number & Pitch: 60 / 3/4 in
• Storage Dimension Width: 12.3710 in
• Storage Dimension Height: 1.25 in
• Storage Dimension Length: 12.3710 in
• Surface Treatment: Protective Coating
• Keyway Size: 1/2 x 1/4 in
• Number Of Hubs: 1
• Hardened Teeth: Non-Hardened Teeth
• Number Of Strands Across: 1
