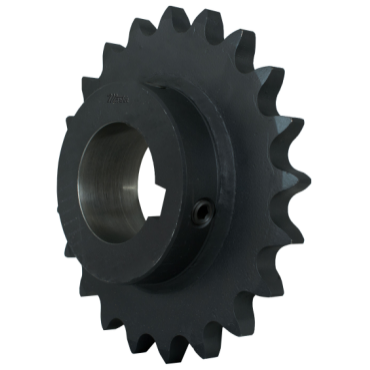

Martin 60BS4211/8 Bored to Size Sprocket - 60 / 3/4 in

Product Description

The Martin 60BS4211/8 is a bored to size sprocket designed for standard roller chains with a pitch of sixty and a diameter of three-quarters of an inch. This sprocket features a finished bore of one point one two five inches and has forty-two teeth. It is made from high-carbon steel to provide strength and durability.

• Includes keyways and setscrews for easy installation.
• Manufactured according to ANSI standards for consistent quality.
• Concentric bore design minimizes run out for better performance.

Product Highlights

This sprocket is ideal for power transmission applications where efficiency and reliability are essential.

Product Information

Standard Information

• Brand: Martin
• MPN: 60BS4211/8
• Material: Steel
• Country of Origin: United States
• Product Type: Finished & Machinable Bore Roller Chain Sprockets

Technical Specifications

• Bore Diameter: 1.1250 inches
• Chain Number & Pitch: 60 / 3/4 inch
• Number of Teeth: 42
• Outside Diameter: 10.4580 inches
• Caliper Diameter: 9.5671 inches
• Length Through Bore: 1.2500 inches
• Pitch Diameter: 10.0361 inches
• Surface Treatment: Protective Coating
