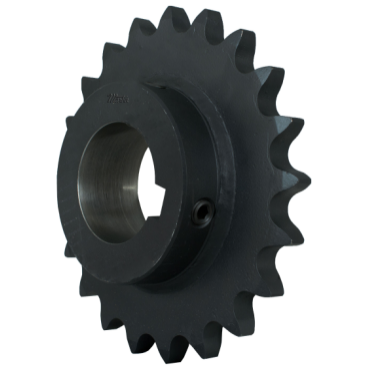

Martin 60BS2413/8 Bored to Size Sprocket - 60 / 3/4 in

Product Description

The Martin 60BS2413/8 is a bored to size sprocket designed for efficient power transmission. This sprocket features a bore diameter of one point three seven five inches and has twenty-four teeth. It is made from high carbon steel, ensuring durability and strength.

• Includes keyways and setscrews
• Manufactured to exceed ANSI standards
• Specialized for standard roller chain applications

Product Highlights

This sprocket is ready for immediate installation on shafts and features two setscrews that are positioned on the centerline of the tooth to ensure secure attachment.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 1.3750 inches
• Number of Teeth: 24
• Pitch Diameter: 5.7460 inches
• Outside Diameter: 6.1470 inches
• Caliper Diameter: 5.2770 inches
• Length Through Bore: 1.2500 inches
• Tooth Width: 0.459 inches
• Chain Number & Pitch: 60 / 3/4 inches
• Hub Diameter: 4 inches
• Surface Treatment: Protective Coating
• Storage Dimensions: 6.2500 inches width, 1.3125 inches height
