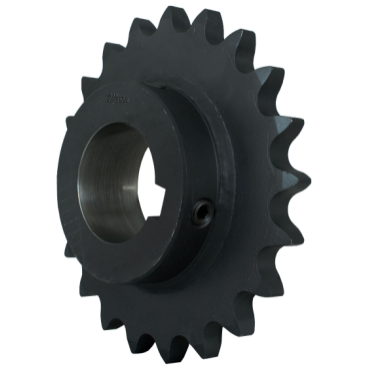

Martin 60BS2213/8 Bored to Size Sprocket - 60 / 3/4 in Replacement MPN 60BS22 1 3/8

Product Description

The Martin 60BS2213/8 is a bored to size sprocket designed for mechanical power transmission. This sprocket features a bore diameter of one point three seven five inches and has twenty-two teeth, making it suitable for standard roller chains with a pitch of sixty over three quarters of an inch.

• Bore diameter: 1.3750 inches
• Manufactured from high carbon steel
• Comes with keyways and setscrews

Product Highlights

This sprocket is ready for use on shafts and meets ANSI standards for tolerances. The keyways align with the centerline of the teeth, ensuring correct positioning.

Product Information

Standard Information

• Brand: Martin
• Part Number: 00192664

Technical Specifications

• Pitch Type: Single
• Hub Diameter: 4 inches
• Bore Diameter: 1.3750 inches
• Tooth Width: 0.459 inches
• Number of Teeth: 22
• Outside Diameter: 5.6660 inches
• Length Through Bore: 1.2500 inches
• Surface Treatment: Protective Coating
